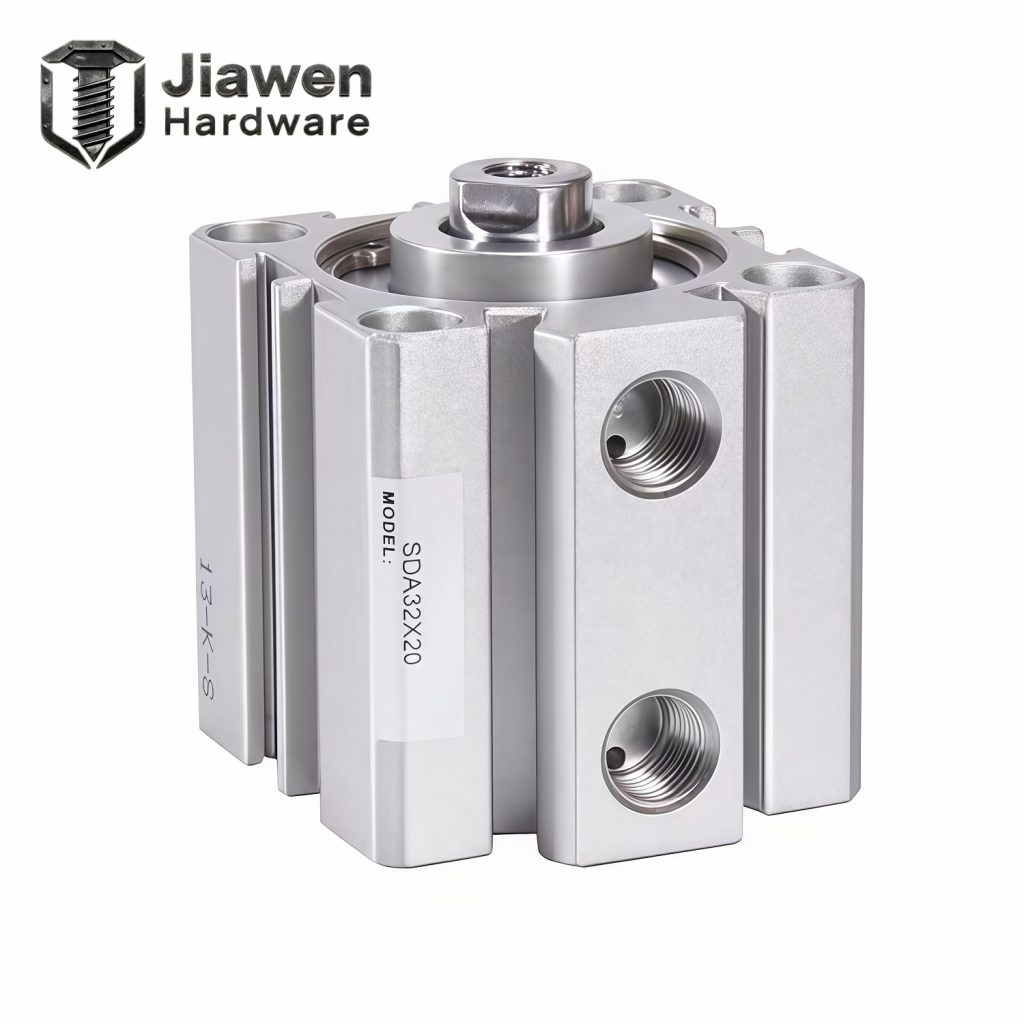

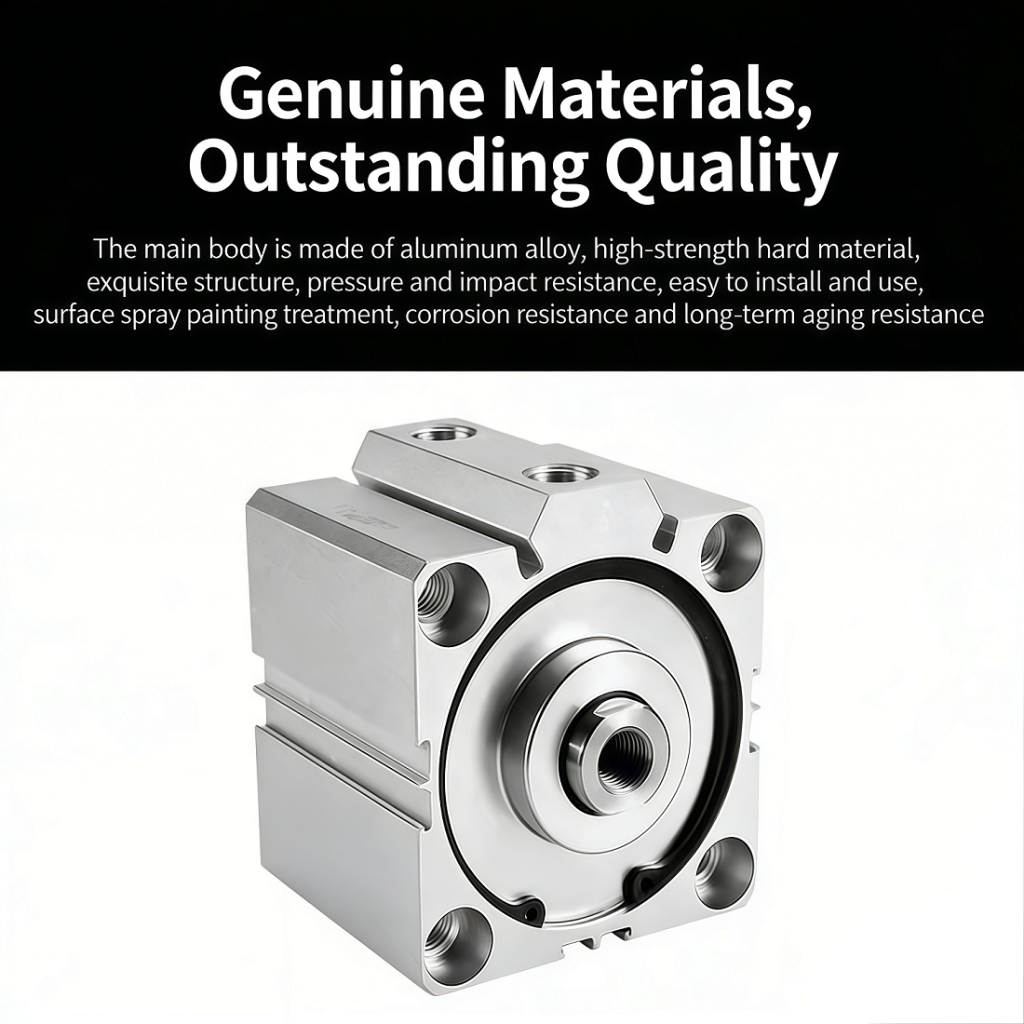

In equipment design and manufacturing, space is often the most valuable resource. As equipment structures become increasingly compact, choosing the right cylinder becomes essential. The SDA cylinder, with its short body length and stable force output, is an ideal solution for space-constrained environments. When standard cylinders are too bulky to install, the SDA compact cylinder delivers efficient and reliable performance within limited space.
· Space-saving
Shortened body design makes installation easier in limited areas.
· Compact design
Small size with a balanced layout, ideal for compact systems.
· Stable performance
Consistent force output even with reduced dimensions.
· Flexible installation
Multiple mounting options adapt to different equipment setups.
How Does It Work?
The SDA cylinder operates by using compressed air to move a piston, turning air pressure into mechanical motion. When air flows into the cylinder, it pushes the piston forward to generate force. Once the air is released, the piston smoothly returns to its original position, ready for the next cycle.
Application Areas
SDA cylinders are widely used across different industries where space is limited and reliable performance is essential.
· Electronics & Semiconductor
Used for PCB positioning, component pick-and-place, and other precision tasks.
· Automation Assembly
Ideal for clamping, positioning, blocking, and pushing small parts.
· Packaging & Food Machinery
Drives cutters, labeling units, and feeding mechanisms, ensuring efficient and reliable operation.
· Medical & Laboratory Equipment
Suitable for environments with strict space and cleanliness requirements.
· Machine Tools & Fixtures
Serves as actuators in pneumatic clamps and jigs.
Usage Precautions
To ensure reliable performance and extend service life, keep in mind the following precautions:
· Installation Alignment: Ensure the piston rod axis is aligned with the load direction. Misalignment can cause side loads, leading to rod bending or abnormal seal wear.
· Air Quality: Use clean, dry compressed air. A filter of at least 40μm is strongly recommended to prevent contaminants from damaging seals.
· Environmental Suitability: For high temperatures, corrosive, dusty, or humid environments, choose cylinders with protective features such as heat-resistant seals or stainless steel construction.
· Stroke Limitation: Due to the compact design and shorter guiding length of SDA cylinders, avoid selecting excessively long strokes to maintain smooth motion and precise positioning.
These factors directly influence both performance and service life.
We provide a wide range of SDA cylinders designed to suit diverse application. With years of experience, we have established a dependable production and supply system. Our own factory allow us to maintain strict quality control and offer flexible delivery options. This ensures that what we deliver is not just a product, but lasting reliability.
Whether you are exploring OEM/ODM support, seeking technical assistance, or considering a reliable long-term partner, we are available to provide quotations and expert guidance. Feel free to reach out and we will be glad to support you in finding the option that best fits your needs.
